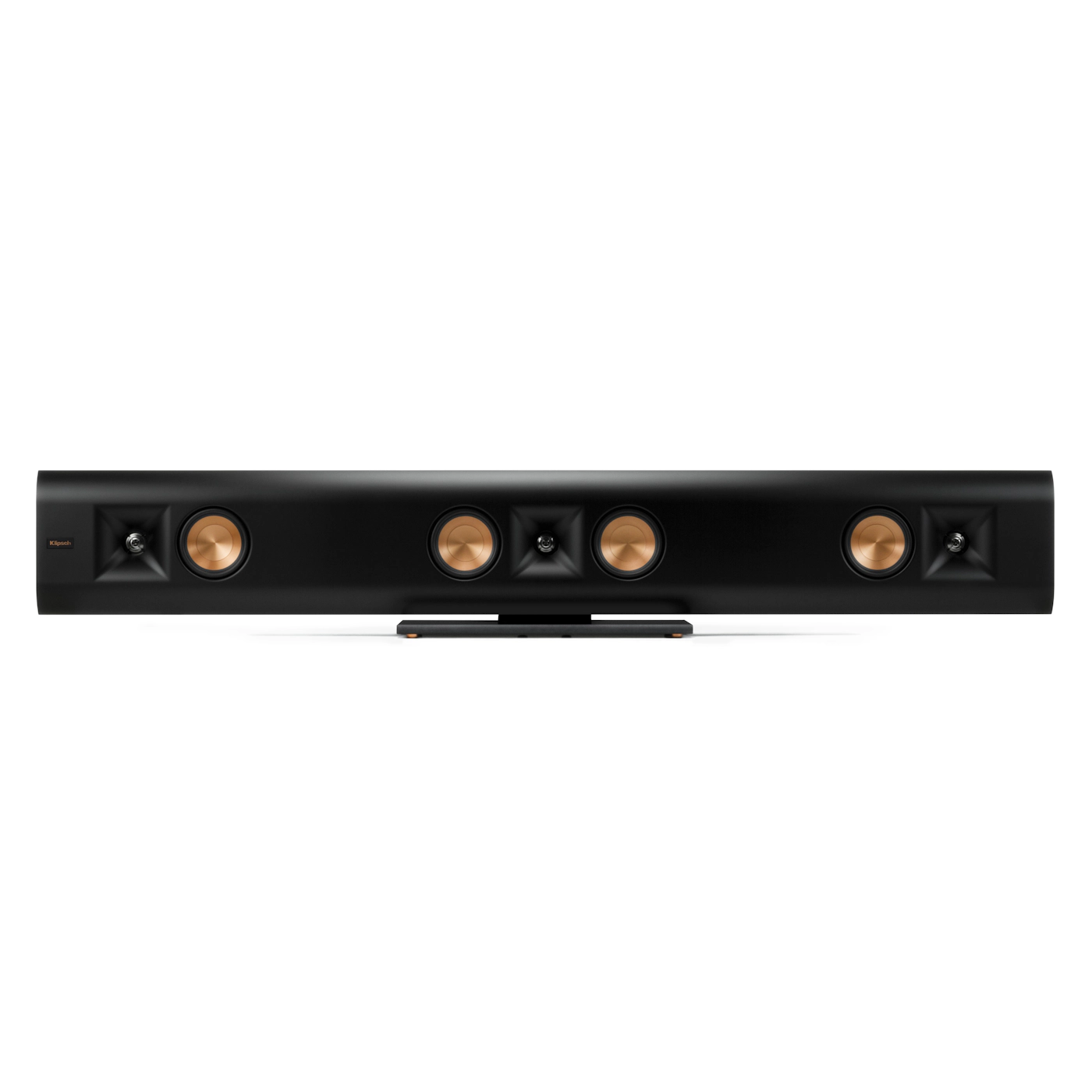

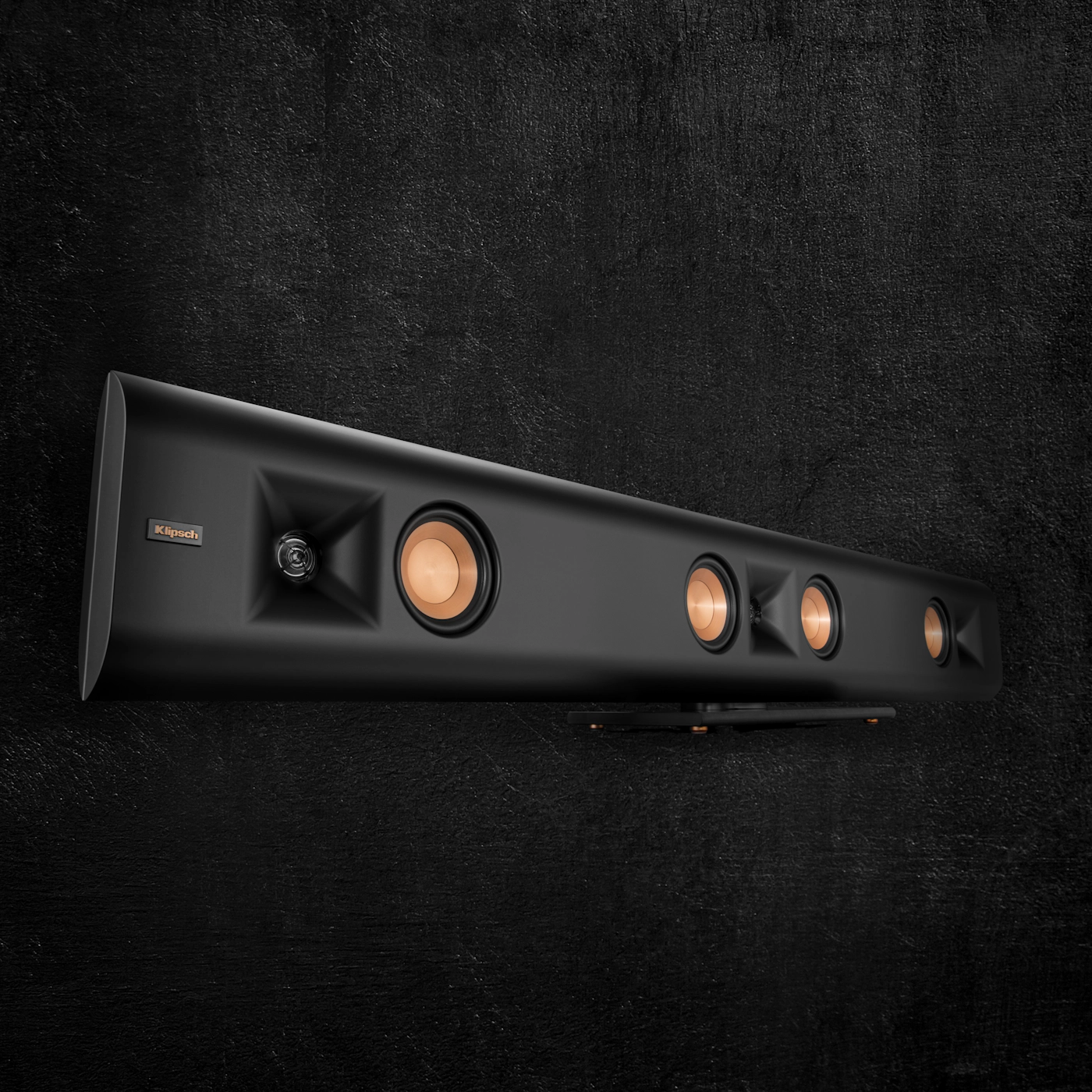

RP-440D SB Passive Sound Bar

(# 1064178) Product Support »

The Reference Premiere Designer On-Wall RP-440D SB is our premium 3-channel passive LCR sound bar. Leveraging the same acoustic technology as our dynamic, detailed, Reference Premiere box speakers in a slim, on-wall solution with an elegant matte finish. Featuring three horn-loaded 1” Titanium Dome Linear Travel Suspension (LTS) tweeters and four 3.5” Cerametallic™ woofers, this premium passive sound bar is the superior choice for minimalist-designed acoustics.

特色:

  • Slim On-Wall Solution Matches Today's Ultra-Flat TV's
  • 3-Channel Sound Bar Provides Left/Center/Right Speakers in Single Seamless Cabinet
  • Reference Premiere Horn Loaded Acoustic Technology
  • 灵活安放
  • Triple 1” Titanium Dome Linear Travel Suspension (LTS) tweeter
  • Quad 3.5" Cerametallic™ Woofers
  • Dual 4-Way Keyholes for secure on-wall mounting
  • Magnetic Wrap-Around Grille
  • Included glass base for table-top mounting
  • Matte Black Painted Finish Blends Seamlessly into Today’s Modern Interiors

Select your location and we'll connect you to the premium custom installer in your area.

Representative(s) for State:

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

规格

Frequency Response65Hz-25kHz +/- 3dB
Sensitivity92dB @ 2.83V / 1m
Power Handling50W / 200W Per Channel
Nominal Impedance8 Ohms Compatible
Crossover Frequency2200Hz
High Frequency DriverThee 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn (One Per Channel)
Low Frequency DriverFour 3.5” (8.89 cm) Cerametallic Cone Woofers (One each for Left and Right, Two for Center Channel)
Enclosure MaterialABS
Enclosure TypeBass Reflex
InputsThree Sets Single Binding Posts
Height6” (15.24 cm)
Width42" (106.68 cm)
Depth2.4" (6.10 cm)
Weight12 lbs (5.44 kg)
FinishMatte Black Paint
Built From2017
Reference Premiere Designer On Wall 5

90x90 TRACTRIX HORN

The Tractrix® horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.

Reference Premiere Designer On Wall 1

磁悬浮式 (LTS) 钛合金高音单元

The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

Reference Premiere Designer On Wall 4

旋制铜铝合金电镀陶瓷振膜低音单元

Cerametallic 低音单元代表了 Klipsch 驱动单元设计的巅峰之作,具有出色的刚性和轻巧的结构,可最大程度减少锥盆分裂和失真。在与 Tractrix 号角处理 LTS 高音单元配合使用时,能提供同类产品中最高的音箱效率。

Reference Premiere Designer On Wall 3

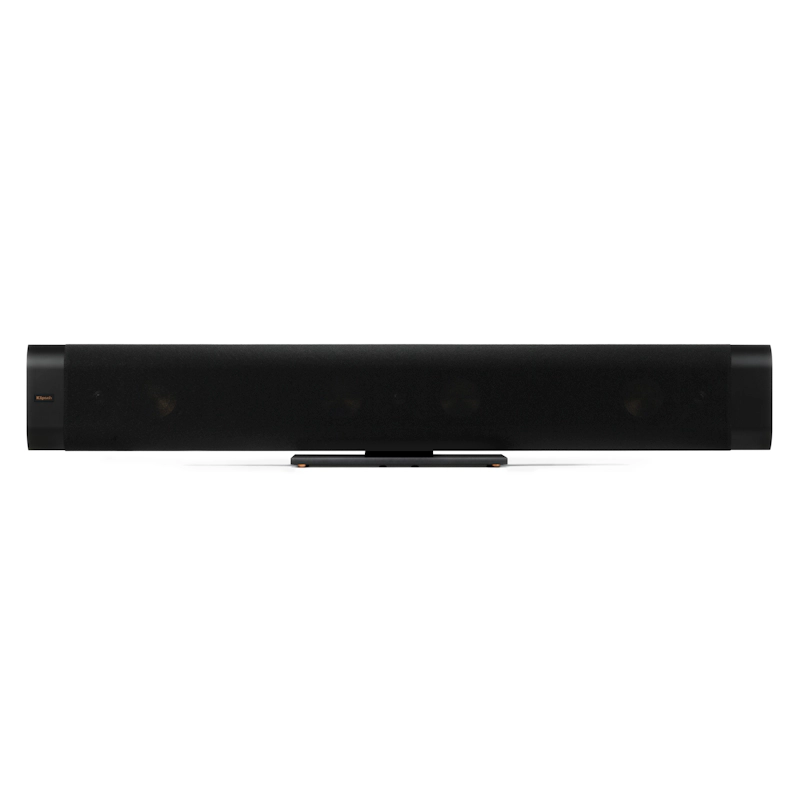

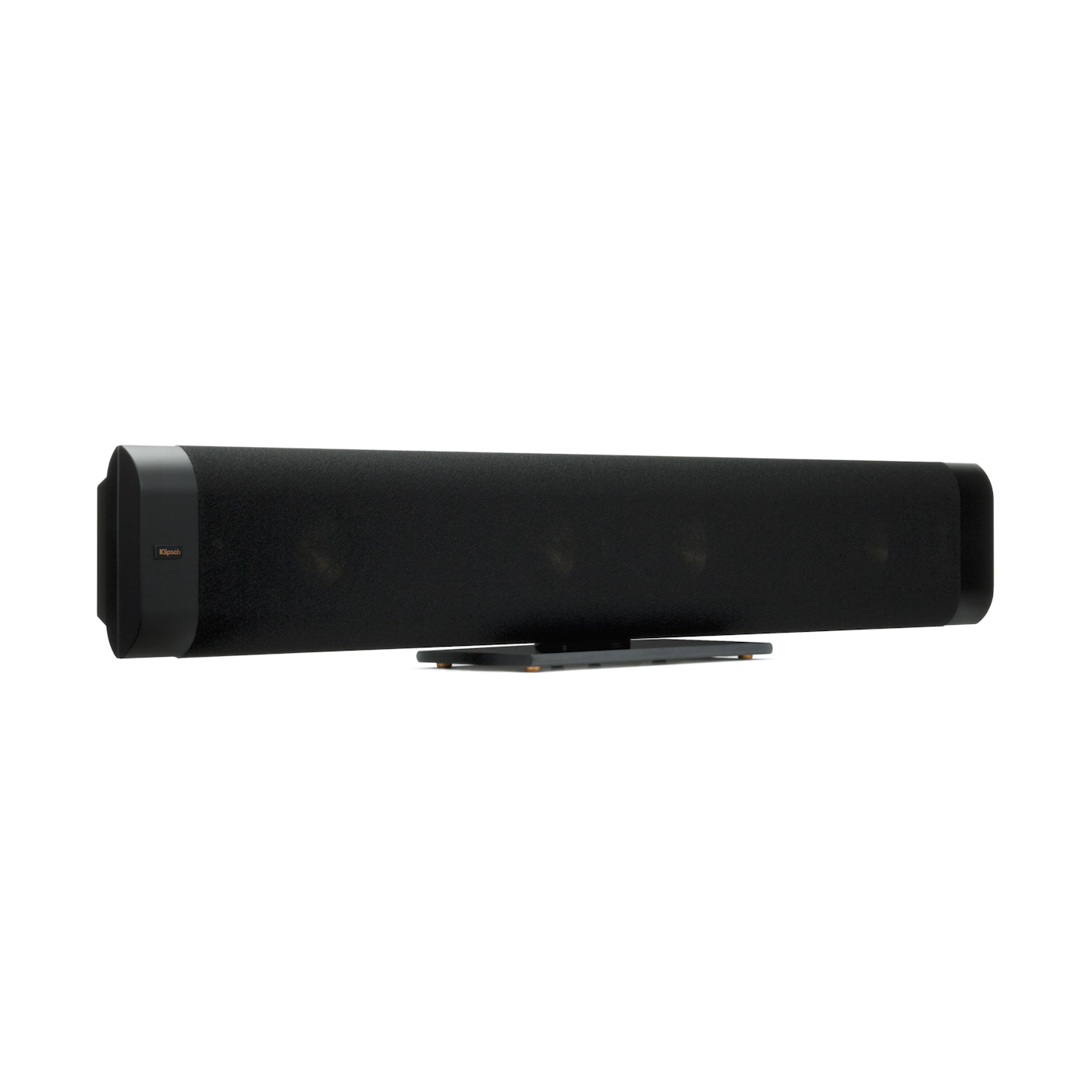

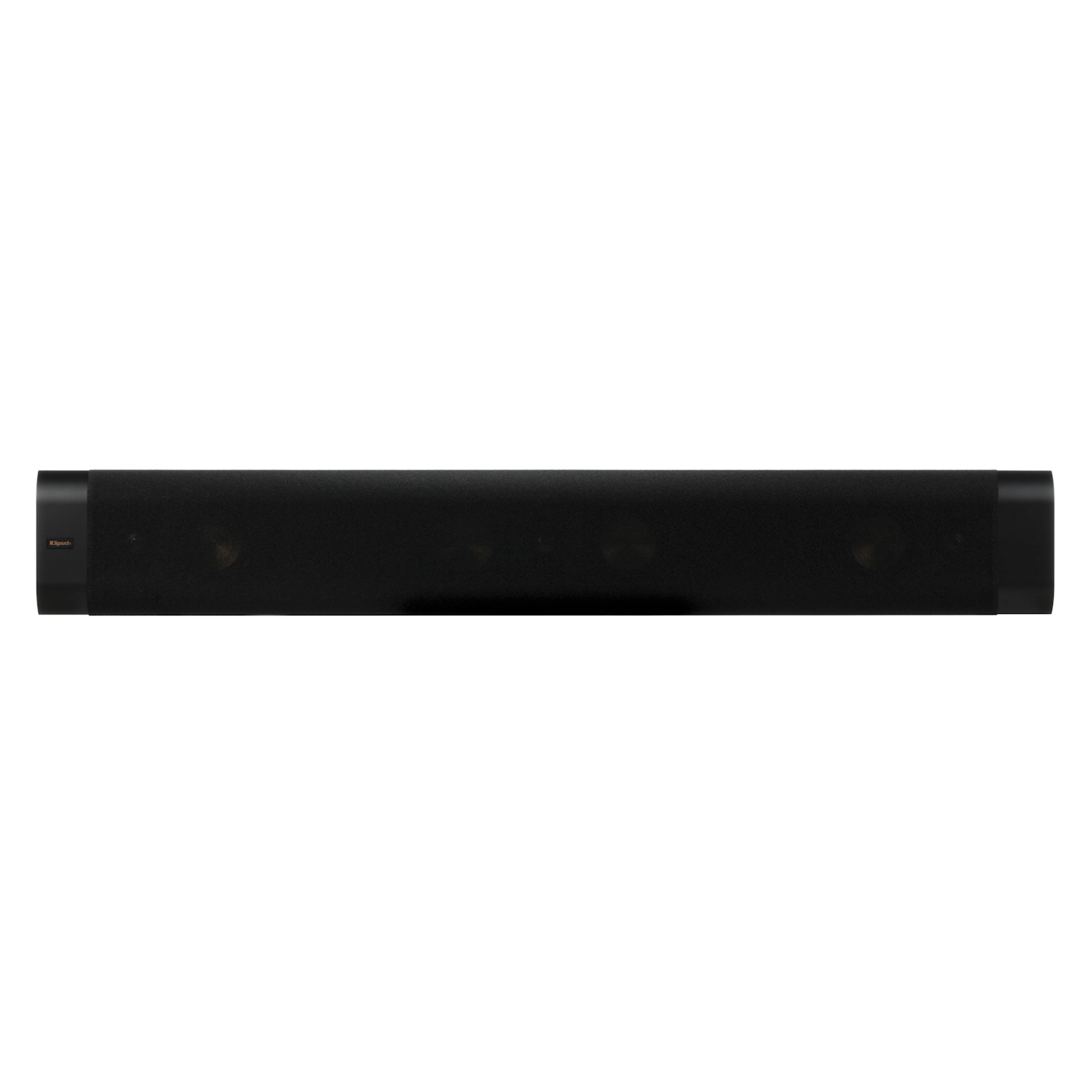

WRAP-AROUND MAGNETIC GRILLE

Front grill attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

Reference Premiere Designer On Wall 2

TABLE MOUNT INCLUDED

Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.
